Container solutions

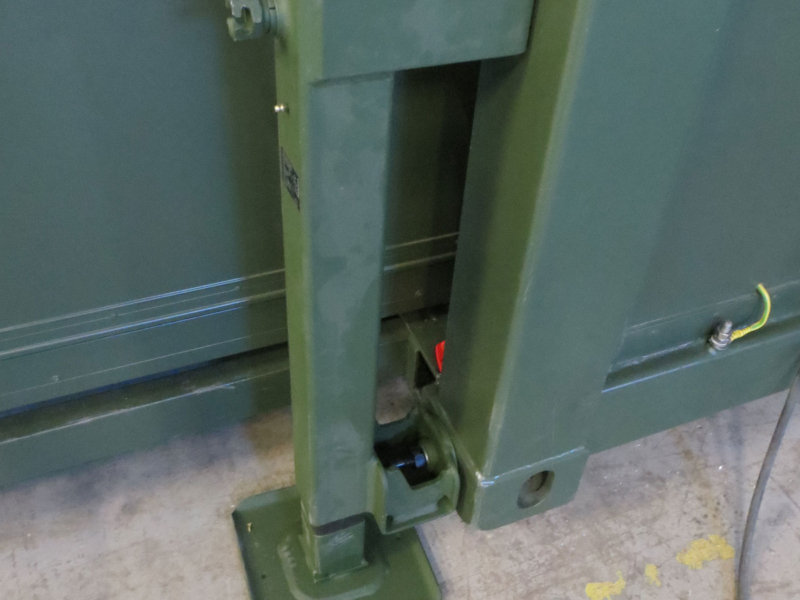

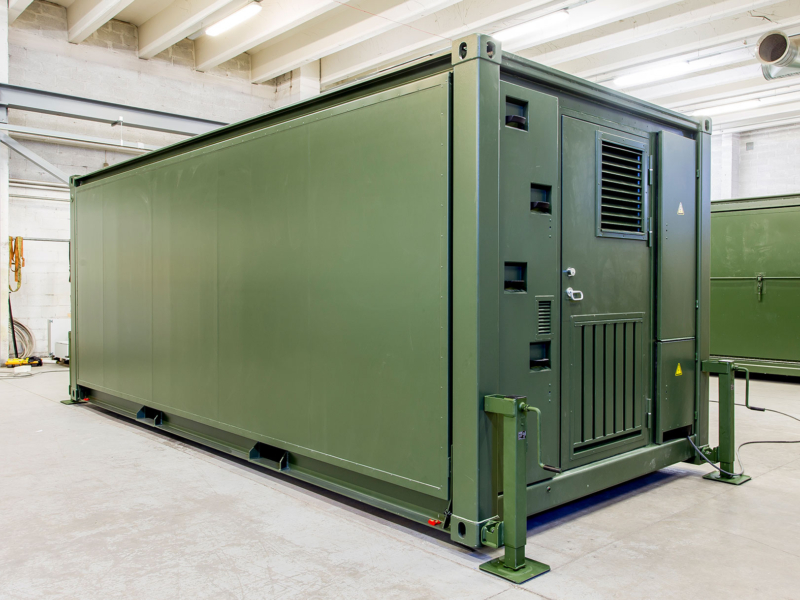

Levelling supports for a maximum lifting height of 600 mm and maximum system carrying capacities up to 16 t (dynamic) and 26 t (static). Levelling supports are used on containers which require precise alignment on the ground, so that they can be linked up to form larger functional units (e.g., mobile hospitals, encampments).

• Levelling supports for DIN ISO 1161 corners, with encased spindles
• Plug-in levelling support
• Levelling supports integrated in corner post and running through ISO-corner
• Attachable levelling support
• Fold-up levelling support
• Jack-type levelling support
• Base frame

Types of Operation

• Manual operation by hand ratchet/spanner/crank
• Individual 24 VDC electric motor drive with or without position control also available for 400 VAC, 230 VAC
• Position control precision: +/- 0.1 degrees
• Safety shutdown when inclination exceeds 3.5 degrees
• Lifting action parallel to ground possible
• Automatic inclination offset to zero degree
